Operating Weight
10,000Kg

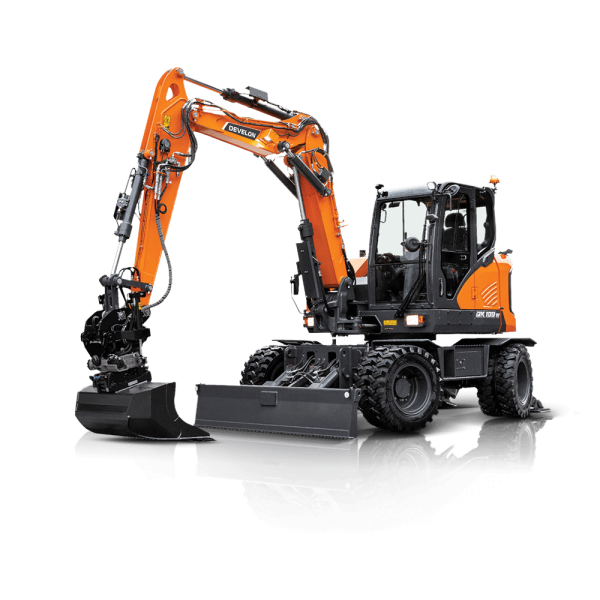

Develon DX100W-7 11.4T Wheeled Excavator
Develon DX100W-7 11.4T Wheeled Excavator
The DEVELON DX100W-7 is a versatile mini wheel excavator designed to excel in projects with limited space. With a powerful 100.6 hp engine and a compact design, this machine delivers high performance without sacrificing agility. Its innovative four-wheel versatility offers three distinct steering modes, including a 4-wheel crab mode for diagonal movement, ensuring you can navigate any job site with precision. The cab is built for operator comfort and safety, featuring a heated air-suspension seat and an Around View Monitor camera system for enhanced visibility.
Choosing the DX100W-7 from DWL Machinery means you’re investing in a machine and a partnership. DWL Machinery provides unparalleled local support, expert service, and a complete inventory of parts to minimize downtime and keep your projects on schedule. Our dedication to customer service ensures that you have a reliable team backing you up, providing the expertise and resources you need to get the most out of your equipment.
Core Performance Specifications
| Feature | Specification | Unit |
|---|---|---|
| Operating Weight | 100,500 | kg |
| Engine Model | Perkins 2506J | |
| Engine Power (ISO 14396) | 469 @ 1,900 | kW @ RPM |
| Engine Power (HP) | 629 | HP |
| Max. Torque | 2,758 @ 1,400 | Nm @ RPM |
| Bucket Capacity (SAE) | 5.4 – 6.8 | m³ |
| Travel Speed (High / Low) | 4.7 / 2.6 | km/h |
| Drawbar Pull | 71,500 | kgf |
Working Range (Standard 7.2m Boom / 2.9m Arm)
| Measure | Dimension | Unit |
|---|---|---|
| Max. Digging Reach | 13,010 | mm |
| Max. Digging Depth | 7,260 | mm |
| Max. Digging Height | 12,310 | mm |
| Max. Dumping Height | 8,070 | mm |
| Min. Swing Radius | 4,835 | mm |
| Max. Vertical Wall Depth | 3,365 | mm |
Dimensions & Shipping Data
| Dimension | Measurement | Unit |
|---|---|---|
| Shipping Length | 14,080 | mm |
| Shipping Width (Standard Shoes) | 4,490 | mm |
| Shipping Height (Boom) | 5,660 | mm |
| Tail Swing Radius | 4,770 | mm |
| Ground Clearance | 900 | mm |
| Track Length | 6,345 | mm |
| Track Gauge (Extended) | 3,900 | mm |
Hydraulic & Tank Capacities
| System | Capacity | Unit |
|---|---|---|
| Fuel Tank | 1,110 | Litres |
| Hydraulic System Total | 1,020 | Litres |
| Hydraulic Tank | 560 | Litres |
| AdBlue® (DEF) Tank | 95 | Litres |
| Engine Oil | 48 | Litres |
| Cooling System | 102 | Litres |
The DEVELON DX100W-7 is a versatile mini wheel excavator designed to excel in projects with limited space. With a powerful 100.6 hp engine and a compact design, this machine delivers high performance without sacrificing agility. Its innovative four-wheel versatility offers three distinct steering modes, including a 4-wheel crab mode for diagonal movement, ensuring you can navigate any job site with precision. The cab is built for operator comfort and safety, featuring a heated air-suspension seat and an Around View Monitor camera system for enhanced visibility.
Choosing the DX100W-7 from DWL Machinery means you’re investing in a machine and a partnership. DWL Machinery provides unparalleled local support, expert service, and a complete inventory of parts to minimize downtime and keep your projects on schedule. Our dedication to customer service ensures that you have a reliable team backing you up, providing the expertise and resources you need to get the most out of your equipment.
Model:DX100W-7
We can arrange delivery Australia wide & Overseas, please contact us to obtain a quote.
DWL Machinery offers a 14 day working on arrival guarantee. Please speak with our team for more information surrounding warranty.
Develon DX100W-7 11.4T Wheeled Excavator
Price on Application
Confirm with seller if any additional costs apply
Engine Power
469 @ 1,900 kW @ RPM
Max Dig
Depth
7,260mm
