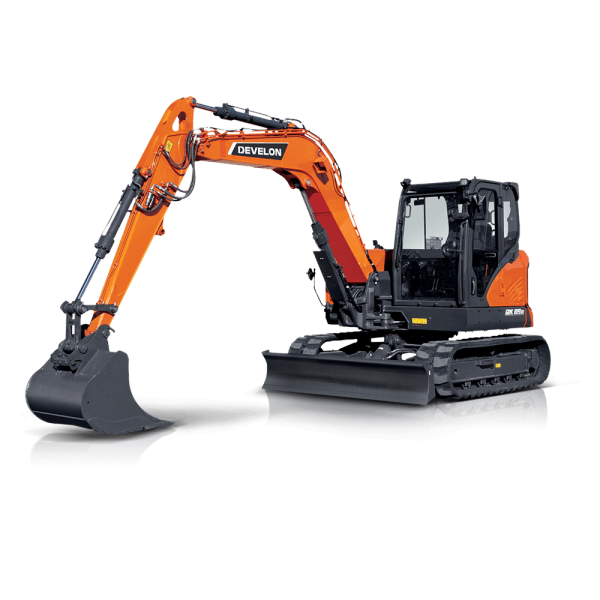

Develon DX89R-7 8.9T Tracked Excavator
Mini Excavator For Sale
The Develon DX89R-7 mini excavator is built for demanding jobs, with an operating weight of 21,025 lbs and a net rated horsepower of 63.2 hp. Its advanced design features torque-limiting piston pumps that ensure efficient power delivery, while integrated slew brakes make for easy and precise positioning. The machine is engineered for versatility, with a hydraulic quick-coupler-ready design and a thumb-ready arm that accommodates a wide range of attachments, making it a valuable asset for utilities and commercial building construction.
By choosing the DX89R-7 from DWL Machinery, you are not only getting a top-of-the-line excavator but also a dedicated partner committed to your success. Our team provides expert local support, comprehensive service, and a dependable supply of parts to keep your equipment running smoothly. We are focused on minimizing your downtime and maximizing your productivity, giving you the confidence that comes with having a reliable and knowledgeable partner backing you every step of the way.
| Classification | DX89R-7 Mini Excavator |
|---|---|
| Engine MODEL | D24 |
| Rated Flywheel Power (Gross) | 65.04 hp @ 2100 rpm (SAE-J1995) |
| Rated Horse Power (Net) | 63.2 hp @ 2100 rpm |
| Max. Torque (Net) | 284 lbf·ft @ 1600 rpm |
| Engine Emissions Tier (EPA) | Tier 4F |
| Engine After Treatment | DOC |
| Engine Make | DEVELON |
| Engine Name | 2.4L Turbocharged Engine w/ 4-Cylinders |
| Main Pump: Max. Flow Rate (each) | 39.36 gal/min |
| Main Pump: Quantity | 1 |
| Ground Clearance | 11.6″ |
| Ground Pressure | 3.98 psi |
| Swing Performance: Max Swing Torque | 2618 lbf·ft |
| Travel performance: Traction Force (Highest Value) | 14550 lbf |
| Travel performance: Traveling Speed – High (/XXX) | 2.92 mph |
| Travel performance: Gradeability | 58 ° |
| Standard Boom Length | 11′ 1″ |
| Standard Arm Length | 5′ 6″ |
| Standard Bucket Size | 0.37 yd³ |
| Overall Height Over Cab | 8′ 9″ |
| Max Digging Reach (Ground) | 22′ 6″ |
| Max Digging Height | 21′ 11″ |
| Max Digging Depth | 13′ 6″ |
| Max Loading Heigh | 15′ 5″ |
| Arm Digging Force – Pressure up | 9824 lbf |
| Bucket Digging Force – Pressure up | 4770 lbf |
| Arm Digging Force – Normal | 9479 lbf |
| Fuel Tank | 42.27 gal |
| Noise Level: Operator | 75 dBA |
| Operating Weight | 21025 lb |
Develon DX89R-7 8.9T Tracked Excavator
Mini Excavator For Sale
Price on Application
Confirm with seller if any additional costs apply
CONTACT DWL
